Miko Grande

Poletop

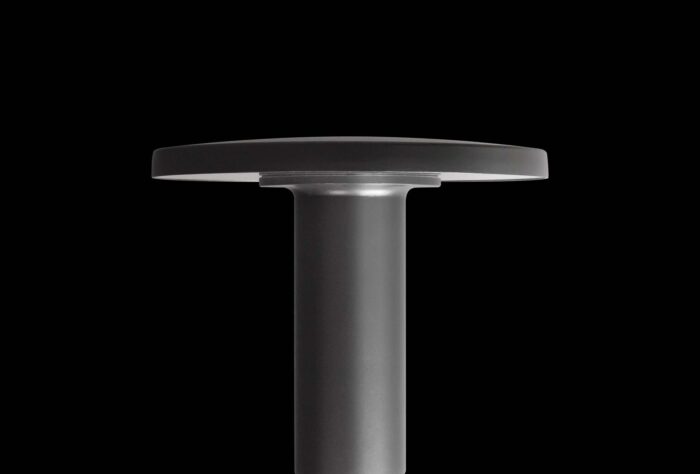

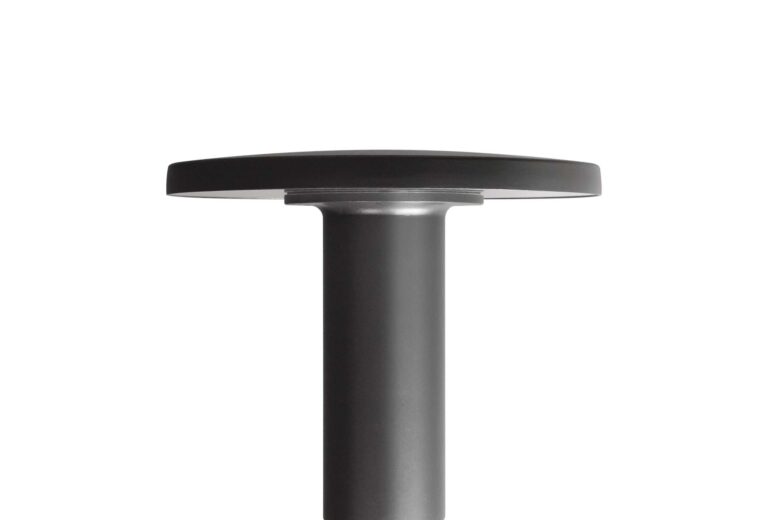

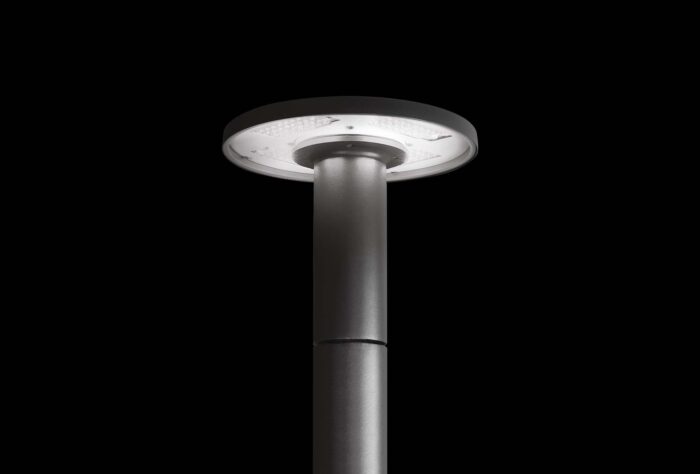

The Miko Grande Poletop from Arcluce combines elegance and innovation with the highest quality of light, without producing any upwards light pollution. Featuring clean and functional lines and high-performance optics, Miko Grande can be integrated with the latest technologies for smart lighting and energy efficiency (optional).

Design: Modern and original, able to integrate into any urban environment.

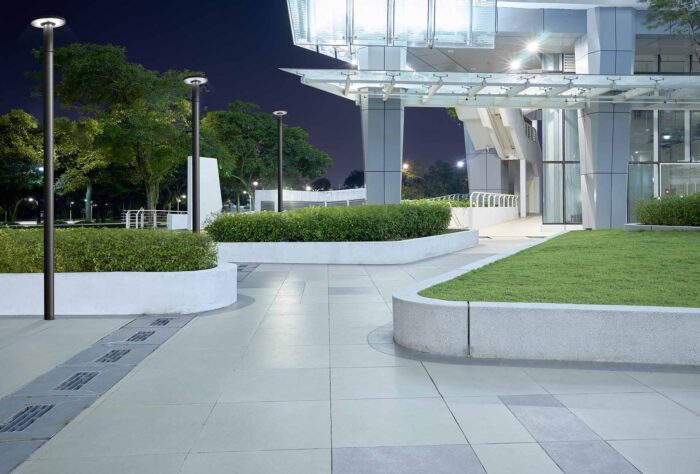

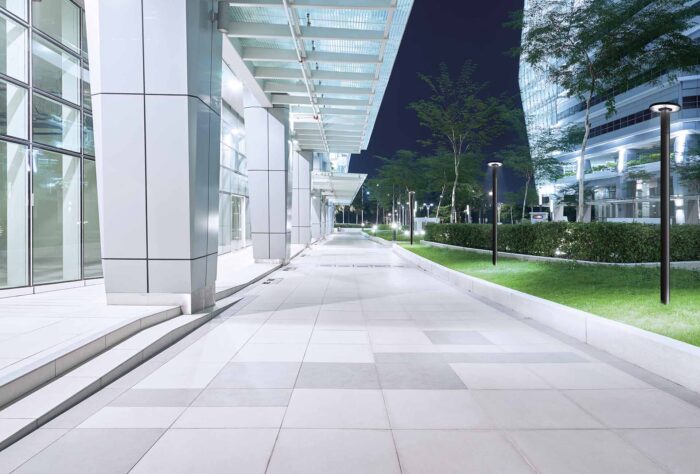

Applications: Cycle paths, squares, parks, avenues and pedestrian areas.

Versions: Symmetric or asymmetric optic for a variable orientation of the light; different colours temperatures available; it can be wall installed on pole heads, or on single/double pole attachments, depending on the needs of the project.

Available with Zhaga & NEMA options – see brochure under downloads tab or contact us for more information.

The Arcluce Miko Grande is part of the Miko Range – a series of coordinated products which includes the Miko Bollard and wall-mounted fittings. See the Miko Range brochure under downloads for more!

Our website contains a carefully chosen selection of Arcluce’s architectural lighting solutions. Contact us for more information on their entire range!

Arcluce Miko Grande
Applications
Variations
PRODUCT NUMBEROPTICSWATTAGENOMINAL LUMENSCCTCRIWIRINGDIAMETERHEIGHT
0886012A-840-21 Type II30W3100lm4000K80ON/OFF360mm305mm
0886014A-840-21 Type III30W3300lm4000K80ON/OFF360mm305mm
0886016A-840-21 Type IV30W3400lm4000K80ON/OFF360mm305mm
0886018A-840-21 Type IV-L30W3300lm4000K80ON/OFF360mm305mm
0886010A-840-21 Type VS30W3200lm4000K80ON/OFF360mm305mm
0886013A-840-21 Type II48W4800lm4000K80ON/OFF360mm305mm
0886015A-840-21 Type III48W5100lm4000K80ON/OFF360mm305mm
0886017A-840-21 Type IV48W5200lm4000K80ON/OFF360mm305mm
0886019A-840-21 Type IV-L48W5100lm4000K80ON/OFF360mm305mm
0886011A-840-21 Type VS48W5400lm4000K80ON/OFF360mm305mm
PRODUCT NUMBEROPTICSWATTAGENOMINAL LUMENSCCTCRIWIRINGDIAMETERHEIGHT
0886002A-840-21 Type II30W3400lm4000K80ON/OFF360mm305mm
0886004A-840-21 Type III30W3600lm4000K80ON/OFF360mm305mm
0886006A-840-21 Type IV30W3700lm4000K80ON/OFF360mm305mm
0886008A-840-21 Type IV-L30W3600lm4000K80ON/OFF360mm305mm
0886000A-840-21 Type VS30W3500lm4000K80ON/OFF360mm305mm
0886003A-840-21 Type II48W5300lm4000K80ON/OFF360mm305mm
0886005A-840-21 Type III48W5600lm4000K80ON/OFF360mm305mm
0886007A-840-21 Type IV48W5700lm4000K80ON/OFF360mm305mm
0886009A-840-21 Type IV-L48W5600lm4000K80ON/OFF360mm305mm
0886001A-840-21 Type VS48W5900lm4000K80ON/OFF360mm305mm
[table “” not found /]

Product Code Builder

Select your preferred product options below to generate and customise your product code.

Selected Options

    Select options to see them here.

Product code

Waiting for selections...

Once completed, your product code will be displayed here and automatically added to the enquiry form below to assist with your enquiry.

Downloads

Polar curve

Change your optic selection above to view different distributions.

If available the polar curve images displayed here are indicative only and may not be applicable for all variants. Please refer to the spec sheet or contact us for more information.

IES & Design files
