DSX2

Street & Area

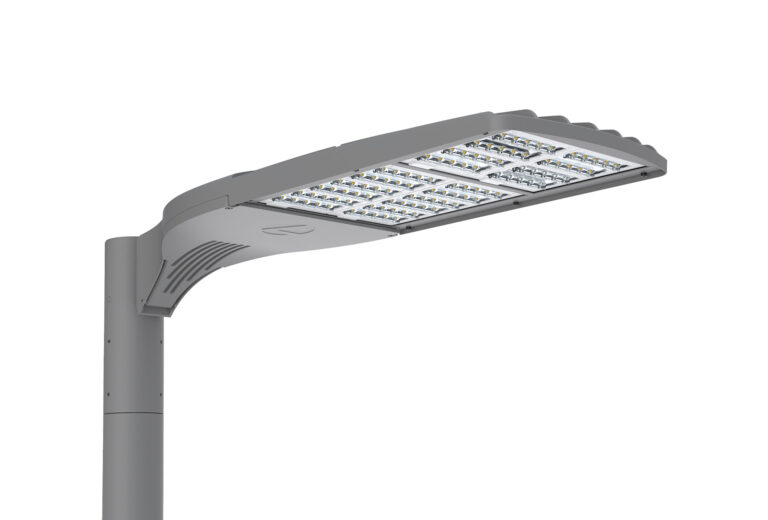

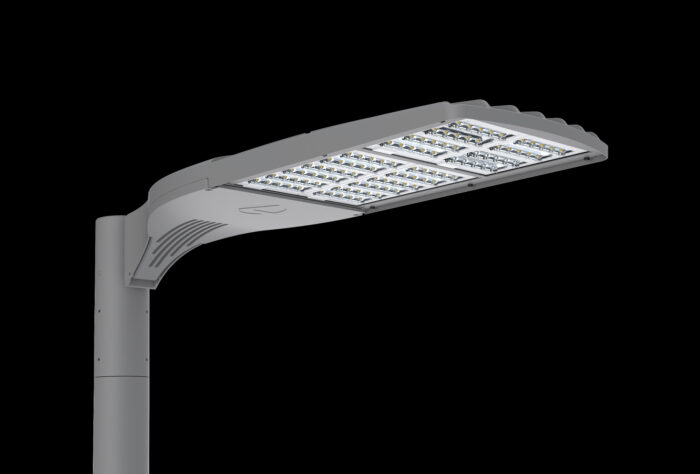

The modern styling of the Holophane D-Series is striking yet unobtrusive – making a bold, progressive statement as it blends seamlessly into its surroundings. The D-Series takes all the benefits of LED technology and moulds it into a high performance, high efficacy and long-life area lighting luminaire.

Available in 3 luminaire sizes, the D-Series range offers a full outdoor area lighting solution, with a range of optics, mounting types (sold separately), shielding and control options.

View the other members of the D-Series family:

DSX0
DSX1

OUTDOORArea & Car Park• Street & Pathway

Features

30,000L - 50,000L

268W - 386W

2700K | 3000K | 4000K | AMBER

70 CRI

IP65

DALI / NEMA / Zhaga

-40°C to +40°C

5 Years

Enhanced Paint Available

Benefits

Additional sizes available
Wide range of optics and control options

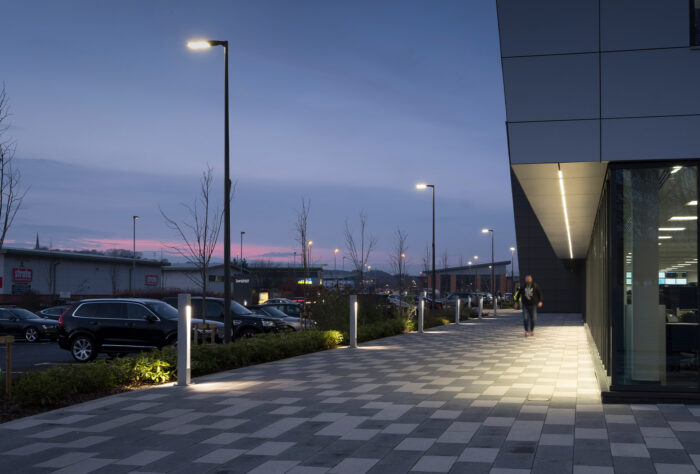

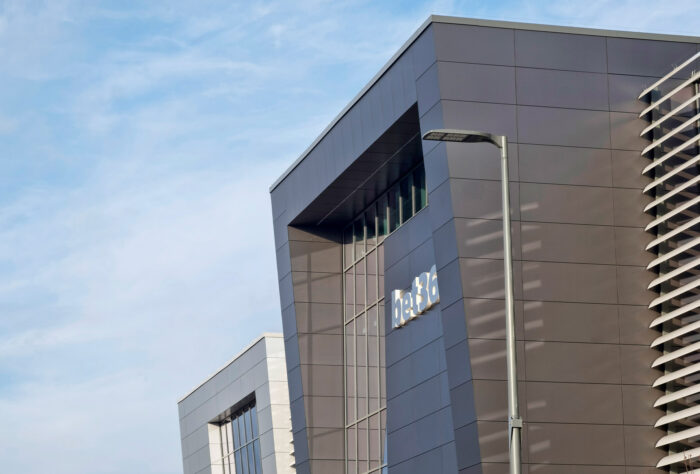

Suitable for many area lighting applications
Also available in wildlife friendly amber

Colours

Notes

All lumen and wattage figures nominal.

Applications

Variations

PRODUCT	LUMENS	CCT / CRI	OPTIC	COLOUR	DIMMING / OPTIONS
DSX2 D-Series	36,000lm > 50,000lm	2700K 70 CRI 3000K 70 CRI 4000K 70 CRI Amber	.SY Symmetric .AY Asymmetric .FW Forward Throw .NR Long & Narrow .BLC Long & Narrow w/ Extreme Cutoff	.C1 Smooth White .C4 Graphite .C6 Smooth Grey .C7 Black .C9 Metallic Silver	DALI / NEMA / Zhaga Enhanced Paint / Custom Colours See Spec Sheet For Complete List of Options

[table “” not found /]

Product Code Builder

Select your preferred product options below to generate and customise your product code.

Selected Options

Select options to see them here.

Product code

Waiting for selections...

Once completed, your product code will be displayed here and automatically added to the enquiry form below to assist with your enquiry.

Downloads

Polar curve

Change your optic selection above to view different distributions.

If available the polar curve images displayed here are indicative only and may not be applicable for all variants. Please refer to the spec sheet or contact us for more information.

IES & Design files

DSX2 Photometric Files

Spec Sheet

Backlight Shields

The Holophane D-Series is available with the following shielding options.

Shielding options may not be available with all variants and optics. Please refer to the spec sheet on our website or contact us for more information.
